    Secoroc QLX 60 , 65 Down the Hole Hammer for Water Well and Mining DTH Drilling Machine

    Secoroc QLX 60/65 Down the Hole Hammer

    Secoroc QLX 60,65 Down the Hole Hammer for High Performance Water Well and Mining DTH Hammers


    Secoroc QLX 60,65 Down the Hole Hammer for High Performance Water Well and Mining DTH Hammers


    Secoroc QLX 60/65 Down the Hole Hammer

    QLX - The Latest in High Performance Water Well and Mining DTH Hammers

    QLX hammer At Roschen and Atlas Copco Secoroc we keep looking for new ways of improving our customers' productivity. That’s why we have taken the best from the TD hammer, added the best of the QL design, thrown in a few new ideas, and created the Secoroc QLX 60 and QLX 65 down the hole hammers.
    These new 6” hammers offer 20% more all-around performance than QL hammers and better water-logged deep hole drilling capacity than its predecessor, the TD hammer. They are benchmarks with the highest rate of penetration (ROP) and reliability that are a cut above the rest, thanks to solutions such as the new e-kit making servicing easier and quicker to execute.

    The QLX 60 and QLX 65 have been stringently field tested, drilling almost 750,000 feet prior to the launch. They have proven outstanding in mining and water well drilling thanks to the Air Select feature that enables the QLX to match a variety of air packages while utilizing the excess air for hammer power.

    The Secoroc QLX 60 and QLX 65 are the first of a completely new range of reliable high performers with the latest technology.

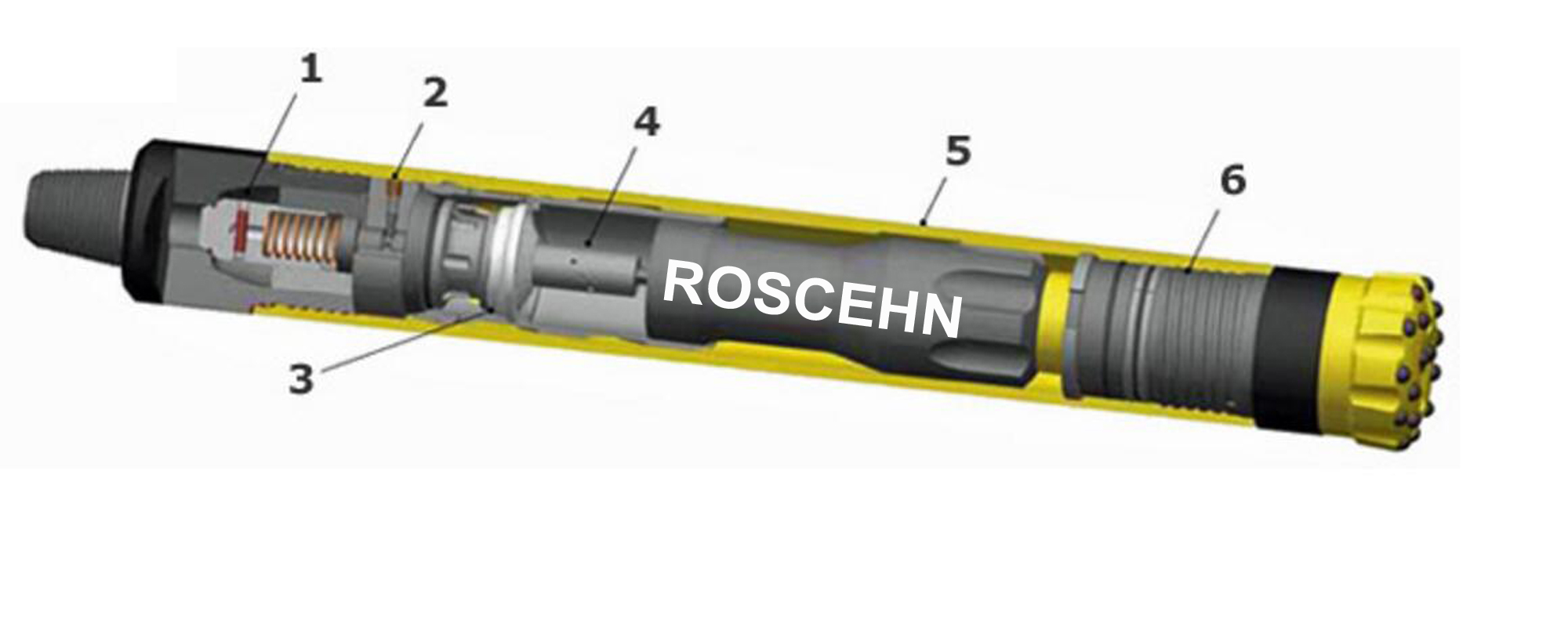

    QLX 60/65 DTH Hammer Specifications
    1Field-proven check system.
    2Robust detent system.
    3Proven Quantum Leap air cycle provides "power" for 80% of piston down stroke.
    4Air Select system allows selectable timing to maximize hammer performance to match air package.
    5Reversible casing to maximize wear.
    6Industry leading QL style shank.




    General SpecificationsQLX 60QLX 65
    Connection3 1/2" API Reg Pin
    Outside diameter5.60"5.88"
    Length w/o bit shoulder to shoulder42.9"42.9"
    Length with bit extended48.1"48.1"
    Length with bit retracted46.6"46.6"
    Weight w/o bit205 lbs.235 lbs.
    Backhead across flats2 1/4" x 4 AF2 1/4" x 4 AF
    Minimum bit size6.125"6.50"
    Maximum bit size8.50"8.50"
    Bore4.750"4.750"
    Piston weight47 lbs.47 lbs.
    Stroke3.75"3.75"
    Maximum pressure differential500 psi500 psi
    Make-up torque6000 ft-lb.6000 ft-lb.



    Air Consumption and Impact Frequency (with Air Select on setting 2)
    QLX 60QLX 65
    scfm/minbpm*scfm/minbpm*
    100 psi22913842291384
    150 psi36015003601500
    200 psi50216165021616
    250 psi65517326551732
    300 psi81818478181847
    350 psi99319639931963


    * blows per minute

    Operational Specifications
    Feed Force2000 - 3000 lbs.
    Rotation Speed30 - 60 rpm

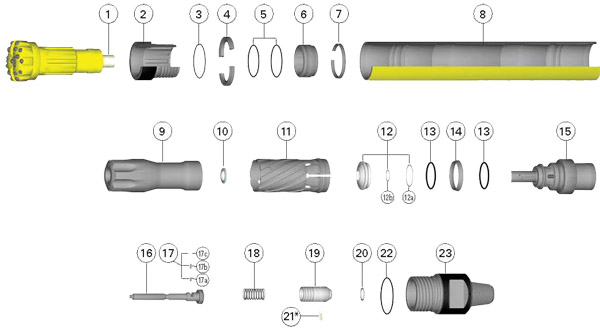

    Ref.PartRef.Part
    1Foot valve14Compression cone
    2Chuck for QLX 60 / for QLX 6515Distributor
    3Chuck O-ring*16Air Select guide plug
    4Bit retaining ring assembly17Detent kit
    5O-ring* (bit retainer)17aPlunger*
    6Bit bearing17bPlunger spring*
    7Bearing retaining ring17cPlunger retainer plug*
    8Casing for QLX 60 / for QLX 6518Check valve spring
    9Piston19Check valve (O-ring included)
    10Tail seal20Check valve O-ring*
    11Cylinder21Check valve choke plug - solid**
    12Valve assembly21Check valve choke plug - 1/4"**
    12aSeal*21Check valve choke plug - 1/8"**
    12bO-ring*22O-ring* (backhead)
    13O-ring*23Backhead for QLX 60 / for QLX 65
    *Not sold separately
    **Item 21 - Choke plug 1/4" and choke plug 1/8" may be used to bypass more air to reduce pressure and/or
    increase bailing velocity.



    Wear LimitsHammers and Kits
    ChuckMin. length2.15"QLX 60 complete, 3 1/2" API Reg Pin
    Casing reverse QLX 60Min. OD5.44"QLX 65 complete, 3 1/2" API Reg Pin
    Casing reverse QLX 65Min. OD5.63"Sustainablility kit (includes items 3, 2x5, 10, 12, 2x13, 20, 22)
    Casing discardMin. OD5.31"O-ring kit (includes items 4x3, 4x5, 4x13, 2x22, 20)
    Bit bushingMax. ID3.623"E-kit, QLX 60 (includes items 2, 3, 2x5, 8, 10, 12, 2x13, 18, 20, 22, 23)
    Piston/Casing clearanceMax.0.009"
    Piston/CylinderMax.0.009"E-kit, QLX 65 (includes items 2, 3, 2x5, 8, 10, 12, 2x13, 18, 20, 22, 23)
    Foot valve protrusionMax.2.31"
