    TCI Tricone Drill Bit 8 1/2 Inch IADC Code 845 G With 4 1/2 Regular Thread

    Ask Lasest Price
    Brand Name : ROSCHEN
    Model Number : ROS
    Certification : ISO,CE
    Price : Negotiate
    Supply Ability : 900 pieces
    • Product Details
    • Company Profile

    TCI Tricone Drill Bit 8 1/2 Inch IADC Code 845 G With 4 1/2 Regular Thread

    CI Tricone Drill Bit 8 1/2 inch IADC Code 845 G with 4 1/2 regular thread

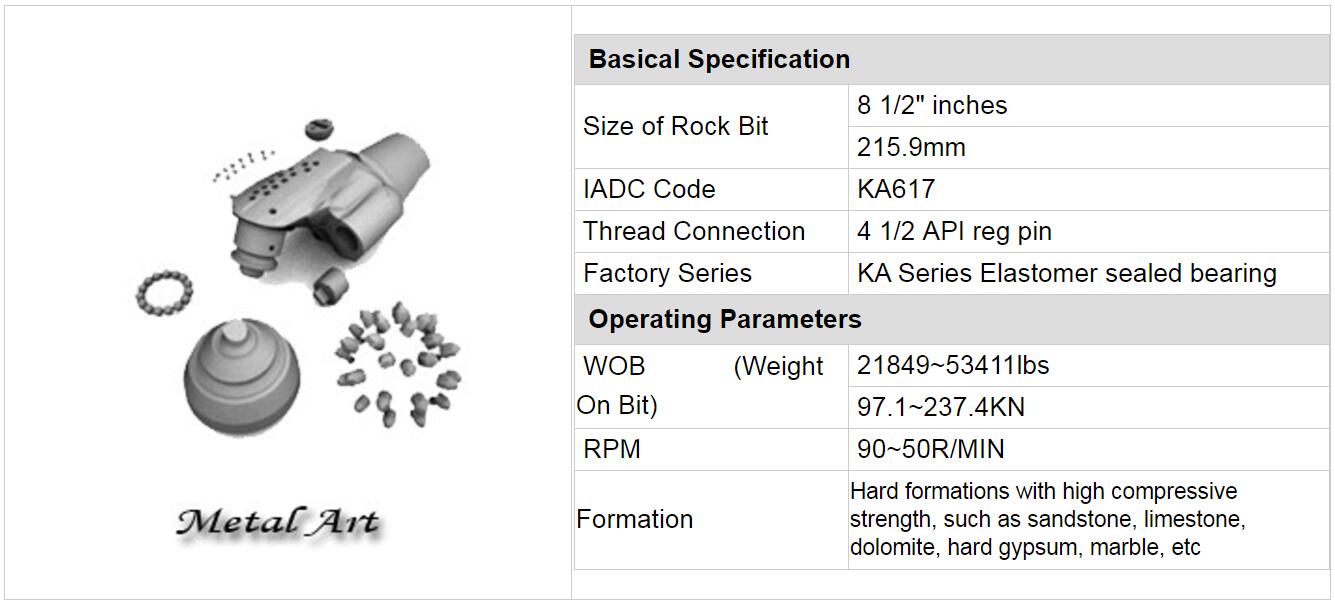

    8 1/2" tricone bit parameter:

    Quick Details
    Brand Name:ROSCHEN
    Model Number:8 1/2" KA617
    Type:Drill Bit
    Machine Type:Drilling Tool
    Certification:API
    Material:MnNiMo Steel
    Processing Type:Forging
    Use:Well Drilling
    Product name:TCI tricone bit
    Application:Oil, Gas and Water well drilling
    Color:Customized
    Bearying Type:Elastomer Sealed Bearing
    Formation:Hard Formation
    Factory Serises:KA Series Elastomer Sealed Bearing
    Advantage:High cost performance
    Standard:API & ISO
    Available Size:3 3/4"~26"
    Market:wordwide

    Product Description:




    Tricone bit IADC code definition:

    First Digit(1~8):

    -1, 2, and 3 designate STEEL TOOTH BITS with 1 for soft, 2 for medium and 3 for hard formations.
    -4, 5, 6, 7 and 8 designate TUNGSTEN CARBIDE INSERT BITS for varying formation hardness with 4 being the softest and 8 the hardest.

    Second Digit (1 ~ 4):

    -1, 2, 3, and 4 are further breakdown of formation with 1 being the softest and 4 the hardest.

    Third Digit (1 ~ 7):

    This digit will classify the bit according to bearing/seal type-see information on different bearing types-and special guage wear protection as follows:

    -1. Standard open bearing roller bit.
    -2. Standard open bearing roller bit,air-cooled.
    -3. Standard open bearing roller bit with gauge protection which is defined as carbide inserts in the heel of the cone.
    -4. Sealed roller bearing bit.
    -5. Sealed roller bearing bit with gauge protection on heel of cones.
    -6. Journal sealed bearing bit.
    -7. Journal sealed bearing bit with gauge protection on heel of cones.

    Feature Code:

    The following letter codes are used in the fourth digit position to indicate additional features:

    A. Air Application
    R. Reinforced Welds
    C. Center Jet
    S. Standard Steel Tooth
    D. Deviation Control
    X. Chisel Insert
    E. Extended Jet
    Y. Conical Insert
    G. Extra Gage Protection
    Z. Other Insert Shape
    J. Jet Deflection



    FAQ

    1. How to send inquiry?

    Answers: It is better send us detailed specifications of products, it is better attaching some photos for better understanding. If you are not experienced on drilling fields, for example, many customers don't know IADC code, please feel free, just tell us the applications like oil/gas/geothermal/HDD/waer/mining, depth of well, average hardness of rocks, then we will advise suggestions and solutions.

    You can:

    - Send us inquiry from Alibaba.com platform.

    - Send email to us directly or talk on Skype or Whatsapp, sales persons are always waiting for service in working days, and all the inquiries can be replied within 10 hours. (Email, Skype, Whatsapp in below.)

    2. What is the quality of your rock bits ?

    Answers: We have many series of rock bits, quality grades are different, and prices are different. We believe, the proper tools with higher cost-performance is the most important. For example, our top quality rock bits is not cost-effective for water well driling, as the water well drilling machine can not drive the super rock bit to perform their best. But for very deep well drilling, high quality grades rock bits is cost effective even its price is much higher.

    So it is better tell us as more as possible the details of projects, then we provide the proper solutions and offer, usually 2 or 3 solutions will be provided for options.

    3. Do you have Selling Records or Recommendation Letters issued by customers?
    Answers: Yes, we have, please ask from us if you are real buyer. You can ask our old customers from worldwide what they think about our quality and services.

    4. Do you support Trade Assurance Service of Alibaba.com?
    Answers: Yes, we support ! And some discount could be offered if using Trade Assurance service.




    TRICONE DRILL BITS - STANDARD CONNECTION SIZES *
    SIZESTANDARD PIN CONNECTION
    2 1/2" to 2 3/4" inclusiveA - AW Rod
    2 7/8" to 3 3/8" inclusiveN4 Rod
    3 1/2" to 4 1/2" inclusive2 3/8" API
    4 5/8" to 5" inclusive2 7/8" API
    5 1/8" to 7 3/8" inclusive3 1/2" API
    7 1/2" to 9 3/8" inclusive4 1/2" API
    9 1/2" to 14 3/8" inclusive6 5/8" API
    14 1/2" to 18 1/2" inclusive6 5/8" API or 7 5/8" API
    18 5/8" to 26" inclusive7 5/8" API or 8 5/8" API
    27" and larger8 5/8" API
    *Tricone bits are available with alternative connection sizes on request.
