Brand Name : | ROSCHEN |
Certification : | ISO |
Price : | Negotiate |
Supply Ability : | 10000000 pcs |
Model Number : | DCDMA A, B drill rod |

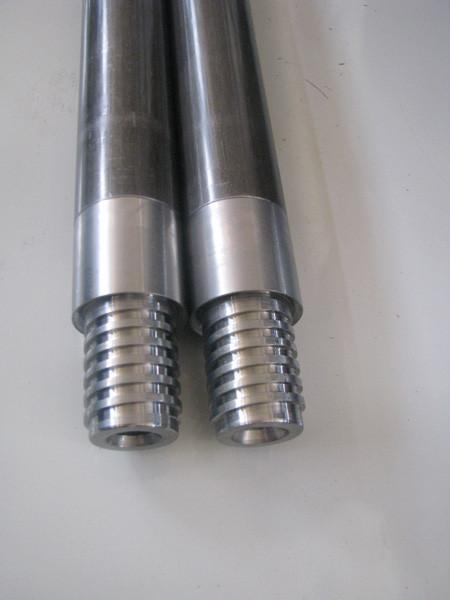

DCDMA A Rod 3 meters Length with 3 TPI thread per inch for
exploration core drilling
Our drill rods are all manufactured by CNC machines. They're made
of high quality alloy steel(XJY850, the best steel in China now)
with heat-treated. We also can produce various sizes of casing
tubes.
DCDMA “A” Rod – Available from ROSCHEN with threaded,
field-replaceable couplings and is completely compatible with your
existing tools strings.
Simply specify your desired Rod length when ordering
A-Series Drill Rod Assembly Length | Outside Diameter | Inside Diameter | Threads Per Inch | Assembly Weight | Assembly Part No |
1-Foot (305mm) | 1-5/8-inch (41mm) | 1-1/8-inch (29mm) | 3-TPI | 4-Pounds (1.8 kg) | 27026 |
2-Foot (610mm) | 1-5/8-inch (41mm) | 1-1/8-inch (29mm) | 3-TPI | 8-Pounds (3.6 kg) | 27027 |
3-Foot (914mm) | 1-5/8-inch (41mm) | 1-1/8-inch (29mm) | 3-TPI | 12-Pounds (5.4 kg) | 27028 |
5-Foot (1.5m) | 1-5/8-inch (41mm) | 1-1/8-inch (29mm) | 3-TPI | 20-Pounds (9.1 kg) | 27029 |
10-Foot (3.1m) | 1-5/8-inch (41mm) | 1-1/8-inch (29mm) | 3-TPI | 40-Pounds (18.1 kg) | 27030 |
wireline diamond core drilling pipe DCDMA standard Specifications | |||
Decription | OD(mm) | ID(mm) | Weight(Kg/3m) |
Rod, BQ 3.0 m Enhanced | 55.5 | 46 | 18 |
Rod, NQ 3.0 m Enhanced | 69.9 | 60 | 24 |
Rod, HQ 3.0 m Enhanced | 88.9 | 77.8 | 35 |
Rod, PQ 3.0 m Enhanced | 114.3 | 101.6 | 52.6 |
