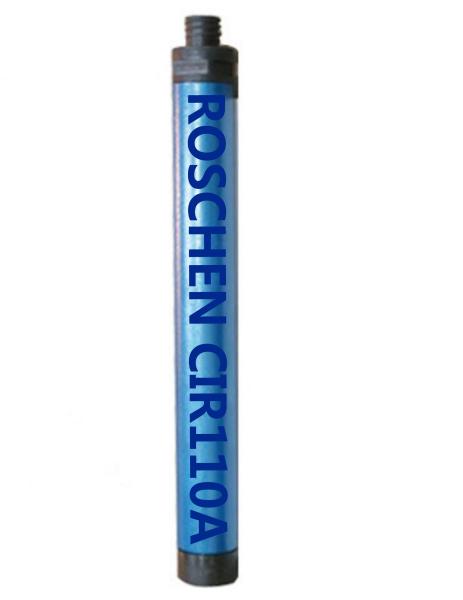

CIR110A Down The Hole Hammer Drill Impact Drilling / Mining Accessories Blue Color

Ask Lasest Price
Brand Name :	ROSCHEN
Model Number :	CIR110A
Certification :	ISO9001
Price :	20~300$
Payment Terms :	L/C, T/T, Western Union, MoneyGram

Add to Cart

Product Details
Company Profile

CIR110A Down The Hole Hammer Drill Impact Drilling / Mining Accessories Blue Color

CIR110A Downhole Drill Hammer Drill Downhole Drill Impact Drilling and Mining Accessories

Name	Down Them Hole Hammer,DTH Hammer
Brand	ROSCHEN
Scope of Application	Open rock drilling, tunnel engineering
Hole Drilling speed(mm/min)	840 (mm/min)
Size (mm)	110
Model	CIR110A
Drill Hole Diameter (mm)	110-120 (mm) (mm)
Impact energy (MPa)	0.5-0.7
Hole depth (M)	200 M
Impact frequency	840(Hz)
Coat diameter	98mm

CIR110A Downhole Hammer Product Details:

Drilling diameter: Φ110--120mm
Jacket diameter: Φ98mm
Total length: 838mm
Weight: 36kg
Working pressure: 0.5-0.7Mpa
Air consumption: 11m3/min
Impact frequency: 840 times / min

DTH Drill Hammer Model Specification Dimensions

Model	Drill Hole Dia. (mm)	Casing OD (mm)	Length (mm)	Weight (kg)	Work pressure (MPa)	Air consumption (m3/min)	Impact frequency (T/min)
65A DTH Hammer	Ø65-67	61	745	13	0.5-0.7	2.5	≥810
70A DTH Hammer	Ø74-76	67	766	15	0.5-0.7	3	≥810
80A DTH Hammer	Ø80-82	72	796	17	0.5-0.7	5.5	≥810
90 DTH Hammer	Ø90-100	80	796	22	0.5-0.7	7	≥840
90A DTH Hammer	Ø90-100	80	796	22	0.5-0.7	6	≥840
900 DTH Hammer	Ø90-100	80	870	24	0.8-1.2	5	≥700
930 DTH Hammer	Ø90-100	80	870	24	0.8-1.2	6	≥700
110A DTH Hammer	Ø110-120	98	838	36	0.5-0.7	11	≥840
DHD340 DTH Hammer	Ø110-140	98	1045	39	1.2-2.0	3.5-15	≥1140
DHD350 DTH Hammer	Ø135-155	122	1213	57	0.6-2.5	7.5-9	≥1140
DHD360 DTH Hammer	Ø152-190	139	1300	98	0.6-2.5	10.5-19	≥1140

CIR110A DTH Hammer Common Troubleshooting Methods

Malfunction	reason	Method of exclusion
Air supply does not impact	1. There is foreign matter at the disc valve and the check valve is stuck.	Disassemble the impactor for cleaning and inspection.
	2. The lubricating oil is too viscous to stick the piston.	Open the check valve, add a small amount of kerosene or petrol flush, and then replace the thinner lubricant.
	3. After the drill bit sticks out, it will snap to the front joint and cannot be reset.	Remove the drill head for maintenance.
	4. Poor lubrication, piston and cylinder bite.	Dismantle and overhaul, replace parts when necessary, and improve lubrication conditions.
	5. Install wrong or missing parts.	Reassemble according to the structure diagram
Shockless	1. The rubber ring is damaged, the adjusting pad and the gasket are not pressed.	Replace apron, increase gasket
Shockless	2. Severe wear of pistons, cylinders, etc.	Replace parts

CIR110A Downhole Drill Impactor Operation Precautions:

1. In normal rock drilling conditions, the impactor is serviced and cleaned and reassembled every 200 hours of operation. Drilling holes or mud slagging is performed every 100 hours.
2. The lubrication of the impactor is achieved through the oiling device on the main engine. Therefore, it is necessary to ensure that the oiling device is filled with oil before the start of each shift, and there is still a surplus before the next shift begins. The lube oil is mechanical oil No. 20 in summer and No. 5-10 mechanical oil in winter. Before the impactor is installed on the drill pipe, the exhaust valve is operated to remove the debris in the drill pipe and check whether there is oil in the drill pipe. Check the impact device after connecting.
3. The impactor and the drill rod must not be reversed in the hole to prevent accidents. In the process of drilling down the hole, if you want to stop drilling, you should not stop the air supply to the impactor immediately. You should lift the drill and blow it, and stop the gas supply when there is no more rock and rock powder in the hole. , Then stop turning.

Welcome to inquire, we will do our best to provide you with the required product information information.
