    Smooth Rotation Mud Pumps For Drilling Rigs , Longer Service Life


    Smooth Rotation Mud Pumps For Drilling Rigs , Longer Service Life

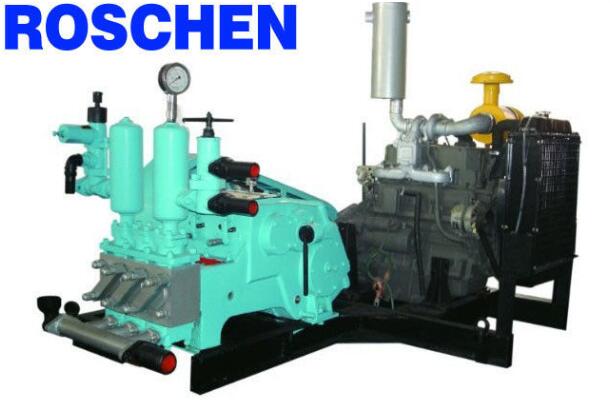

    Model: RS-300 Mud Pump

    Horizontal triplex single acting reciprocation piston pump

    RS-300/12 MUD PUMP 2103 x 940 x 1130 45kw Drilling Mud Pumps

    RS-300/12 MUD PUMP 45kw horizontal triplex single acting reciprocation piston pump

    RS-300/12 MUD PUMP 45kw horizontal triplex single acting reciprocation piston Drilling Mud pump



    RS-300 Mud Pump Description:


    RS-300 or RS-300/12 Mud Pumps is equipped with drilling rigs to drill holes with mud. During drilling mud pump pumps slurry to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground. It is applied to geological core drilling and prospecting drilling with depth less than 3000 meter. RS-300, RS-300/12 is mainly used to equip with core drilling rig to make less than 3000 meters drilling.



    Specifications:


    1. horizontal, triplex, single acting
    2. four shifts of flow rates&pressures
    3. smooth rotation
    4. longer service life


    Technical Parameters of mud pump:


    MODEL

    RS-300 ; RS-300/12 Mud Pump

    TYPE

    Horizontal, Triplex, Single Acting Reciprocating pump

    STROKE (mm)

    110

    LINER DIA. (mm)

    75

    STROKES (min-1)

    206 151 112 82

    DISPLACEMENT (L/min)

    300 220 160 120

    PRESSURE (Mpa)

    6.0 8.0 10.0 12.0

    INPUT POWER (kW)

    45

    SUCTION PIPE DIA. (mm)

    76

    DISCHARGE PIPE DIA.(mm)

    51

    DRILLING HOLE DEPTH

    Diamond Core Drilling <3000m

    Tungsten Carbide Drill <2000m

    DIMENSION (mm)

    2103X940X1130

    WEIGHT

    750KG



    Functions:


    RS-300, RS-300/12 pump is a horizontal, triplex, single acting reciprocation piston pump.


    RS-300, RS-300/12 pump can also be used as a mud-pump cooperating drilling machines with large caliber no more than 1500m,or be used as a cooperative pump with the percussive rotary drilling.

    RS-300, RS-300/12 pump has four shifts of flow rates and four shifts of pressures, which can meet any grouting or drilling better. Comparing to some other pump with same specifications.

    RS-300, RS-300/12 Mud pump has advantages such as smooth rotation, large-scale variable rates of flow, high output pressures, longer service life of the wearing parts and steady performance, etc.


    Smooth Rotation Mud Pumps
