    Round NUE Casting Carbon Steel Pipe Coupling 2-3/8 inch to 4-1/2 inch

    Ask Lasest Price
    Brand Name : ROSCHEN
    Model Number : 2-3/8" , 2-7/8", 3-1/2", 4", 4-1/2"
    Certification : ISO, API
    Price : Negotiation
    Supply Ability : 1000 pcs
    • Product Details
    • Company Profile

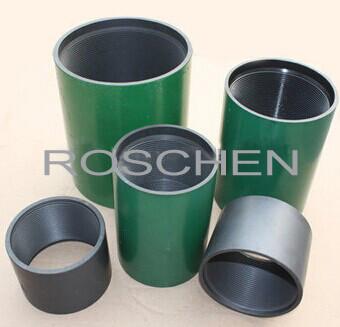

    Round NUE Casting Carbon Steel Pipe Coupling 2-3/8 inch to 4-1/2 inch


    Round NUE Casting Carbon Steel Pipe Coupling 2-3/8 inch to 4-1/2 inch


    Quick Details:

    Material: Carbon Steel
    Technics: Casting
    Type: Coupling
    Model Number: BTC
    Connection: Thread
    Shape: Round
    Head Code: Round


    Specifications:


    1. Size: 2-3/8" , 2-7/8", 3-1/2", 4", 4-1/2"
    2. Standard: API 5CT, API 5B
    3. Type: NUE
    4. Grade: J55, K55, N80, P110


    The API external-upset-end (EUE) tubing connection is widely used because it is good, serviceable connection in most wells. The EUE joint has a designed joint strength in tension and pressure strength greater than that of the pipe body and, therefore, is considered a 100% joint efficient connection.

    To improve the seal performance of API EUE tubing in high-pressure service, a grooved coupling ,which accepts nonmetallic seal rings, is sometimes used in the coupling (see API SPEC 5CTSR13)

    Designed in accordance with API 5CT/5B and are made of good seamless steel. EUE petroleum tubing coupling cover the outer diameter from 77.80mm to 141.30mm, it is bigger than the outer diameter of the non upset threaded end product.

    We carry size range of 2-3/8", 2-7/8", 3-1/2", 4" and 4-1/2" in J55, K55, N80, P110 grade. All of our couplings meet the API specification 5CT/5B.

    1. Size: 2-3/8” 2-7/8″, 3-1/2”, 4″, 4-1/2″
    2. Standard: API 5CT /5B
    3. Type: NUE
    4. Grade: J55/K55/N80/L80/P110
    5. Packaging: wooden pallet, tight wrapped with plastic film or paper carton


    Tubing Coupling Size and Dimension:


    Size

    Type of Thread

    O.D*L (mm)

    Weight(kg)

    2-3/8"

    NUE

    73.02*107.95

    1.28

    2-3/8"

    EUE

    77.80*132.82

    1.55

    2-7/8"

    NUE

    88.90*130.18

    2.34

    2-7/8"

    EUE

    93.17*133.35

    2.40

    3-1/2"

    NUE

    107.95*142.88

    3.71

    3-1/2"

    EUE

    114.30*146.05

    4.10

    4"

    NUE

    120.65*146.05

    4.35

    4"

    EUE

    127.00*152.40

    4.82

    4-1/2"

    NUE

    132.08*155.58

    4.89

    4-1/2"

    EUE

    141.30*158.75

    6.05
