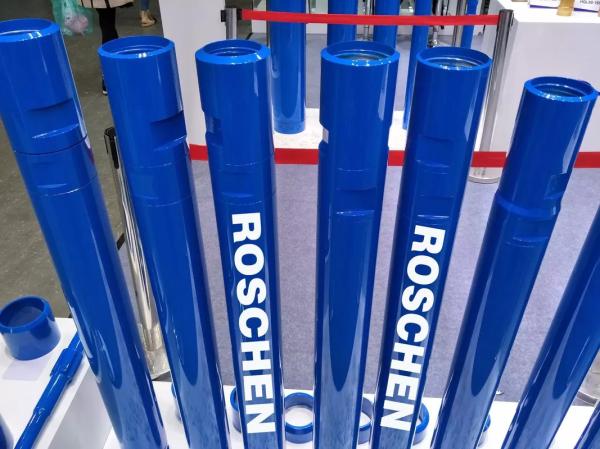

    Dual Wall Drill Rod for Drilling Down The Hole Hammer Atlas Copco Reverse Circulation Hammer

    Ask Lasest Price
    Brand Name : ROSCHEN
    Model Number : size 3" 3.5" 4" 5" 6" 8" 10" 12"
    Certification : ISO9001
    Price : negotiate
    Supply Ability : 10000 pcs
    • Product Details
    • Company Profile

    Dual Wall Drill Rod for Drilling Down The Hole Hammer Atlas Copco Reverse Circulation Hammer

    Dual Wall Drill Down The Hole Hammer Reverse Circulation Carbon Steel



    Down The Hole Hammer characteristics:


    1.Based on previous experience of ordinary hammer,combined with feature of reverse circulation hammer,optimized internal structure and ideal energy transfer,thus ensuring the series of hammers drilling with fast,smooth and continuous sampling.

    2.The internal structure is very simple with components of high rigidity,thus ensuring long life and maintenance of the hammer.

    3.The collection tube adopts an integrative design and can be replaced without disassembling the hammer with catburizing treatment,it has good abrasive resistance.

    4.Equipment with bits designed with patent. Simple by replacing the drill bit,the same hammer can drill holes different sizes ensuring that the sample is not contaminated.

    5.In difficult conditions such as loose soil,hard rock and plenty of water exist,sampling can be done well.




    Down The Hole Hammer Application fields:


    All kinds of fields, such as mining, quarry, tunnel, bridge, construction and etc., but extremely excellent to use with casing tubes during casing drilling.


    Reverse circulation (RC) Hammer Specification
    SizeRC Hammer ModelROSCHEN RC Hammer Model
    3"RC Hammer RE035ROS RC 35
    4-4 1/2"RC Hammer RE004ROS RC 40
    RC Hammer RE540ROS RC 45
    5"RC Hammer RE040ROS RC 50
    RC Hammer RE542ROS RC 50
    RC Hammer RE543ROS RC 50
    RC Hammer RE545ROS RC 50
    5-5 1/2"RC Hammer RE052ROS RC 55
    RC Hammer RE547ROS RC 55
    5 1/2-5 3/4"RC Hammer RE054ROS RC 55
    RC Hammer RE140ROS RC 55

    ROSCHEN RC Hammers Technical Specifications
    Hammer SizeHammerBit ShankROSCHEN CodeHole Range (mm)External Diameter (mm)Length (without bit) mmWeight (N.W.) kgsConnection ThreadWorking Pressure
    3"RE531RE531ROS RC 3084-100811069293" Remet1.0-3.0Mpa
    3"RE035RE035ROS RC 3584-105851075353" Remet1.0-3.0Mpa
    4 1/2"RE004RE004ROS RC 40111-1271071252523.5"-4" Remet 4" Metzke1.0-3.0Mpa
    4 1/2"RE540RE540ROS RC 45111-1271071252523.5"-4" Remet 4" Metzke1.0-3.0Mpa
    5"RE040RE040ROS RC 50113-130109.51191573.5"-4" Remet 4" Metzke1.0-3.0Mpa
    5"RE542RE542ROS RC 50113-130109.51191573.5"-4" Remet 4" Metzke1.0-3.0Mpa
    5"RE543RE543ROS RC 50120-1351161191623.5"-4" Remet 4" Metzke1.0-3.0Mpa
    5"RE545RE545ROS RC 50122-135117.51261654"-4.5"Remet 4"-4.5" Metzke1.5-3.5Mpa
    5 1/2"RE547RE547ROS RC 55130-146124.51270714.5"Remet 4.5" Metzke1.5-3.5Mpa
    5 1/2"RE052RE052ROS RC 55130-146124.51270714.5"Remet 4.5" Metzke1.5-3.5Mpa
    5 3/4"RE054RE054ROS RC 55130-146124.51270854.5"Remet 4.5" Metzke1.5-3.5Mpa
    5 3/4"RE140RE140ROS RC 55130-146124.51270854.5"Remet 4.5" Metzke1.5-3.5Mpa
    5"PR40PR40ROS RC 50124-142120.5136280.53.5"-4.5" Remet 3.5"-4.5" Metzke1.5-3.5Mpa
    5 1/2"PR52PR52ROS RC 55126-142121122768.54"-4.5"Remet 4"-4.5" Metzke1.5-3.5Mpa
    5 1/2"PR52RPR52/PR52RROS RC 55130-1461241225654"-4.5"Remet 4"-4.5" Metzke1.5-3.5Mpa
    5 1/2"PR54PR54ROS RC 55135-150130129484.54.5"Remet 4.5" Metzke1.5-3.5Mpa
    6"MX5456MX5456ROS RC 60136-1501321362904.5"Remet 4.5" Metzke1.5-3.5Mpa
    6"~6 1/2"RC62/RC62RRC62/RC62RROS RC 65152-1901461320110As Request1.5-3.5Mpa
    8"RC82/RC82RRC82/RC82RROS RC 80190-2501801395185As Request1.5-3.5Mpa
    10"RC100/RC100RRC100/RC100RROS RC 100250-3702401528328As Request1.5-3.5Mpa
    Notes:
    Metzke, Remet thread is available!
    Any special type shank of RC Hammer will be available by requests.


    Reverse Circulation RC Hammer Details



    DTH Bit


    DTH bit is also our main product. After mang years search, we have rich experience in development and manufacturing high quality products, which adopted high-quality raw materials, advanced technology and passed through strictly inspection.


    1.high and low air pressure down-the-hole drill bits
    2.Low air pressure holeDia.:65-220mm

    3.High air pressure hole Dia.:85-305mm

    4.Face type:drop center/concave/convex/double gauge/flat

    5.Our DTH Bit can be suitable for many types of DTH Hammer, such as XL, Mission, COP, IR, Mach, Demag, SD, Bulroc, Halco Mach, Digger etc.
