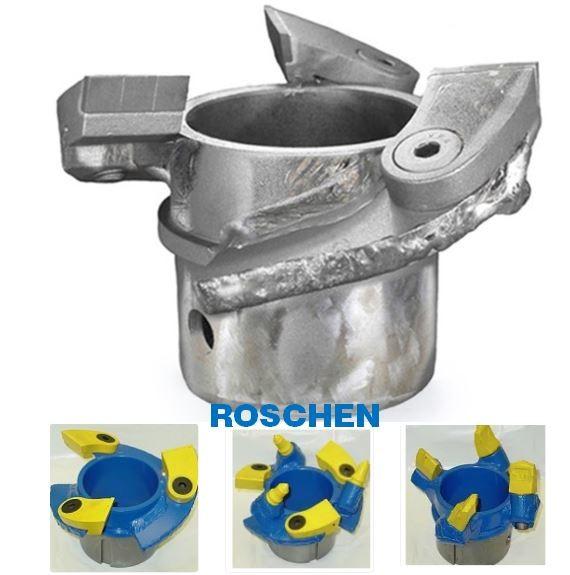

Blade Cutterhead Bullet Cutterhead Spade Cutterhead

Blade Cutterhead

Our Blade Cutterhead features carbide-tipped Blade Cutters, most effective in soft to medium/soft formations such as dirt, clay, mild sandstone, and light shale.

Description	Lbs.	Kg.
3 1/4″ (83mm) DK Blade Cutterhead – 7 1/2″ (190mm) O.D.	11	5
3 3/4″ (95mm) DK Blade Cutterhead – 8 1/2″ (216mm) O.D.	16	7.3
3 3/4″ (95mm) DK HD Blade Cutterhead – 8 1/2″ (216mm) O.D.	16	7.3
4 1/4″ (108mm) DK Blade Cutterhead – 8 3/4″ (222mm) O.D.	16	7.3
4 1/4″ (108mm) DK HD Blade Cutterhead – 8 3/4″ (222mm) O.D.	16	7.3
6 1/4″ (159mm) DK Blade Cutterhead – 11″ (279mm) O.D.	23	10.4
6 1/4″ (159mm) DK HD Blade Cutterhead – 11″ (279mm) O.D.	23	10.4
7 1/4″ (184mm) DK HD Blade Cutterhead – 12″ (310mm) O.D.	33	15
8 1/4″ (210mm) DK HD Blade Cutterhead – 13″ (330mm) O.D.	35	15.9
3 1/4″ (83mm) TK Blade Cutterhead – 7 1/2″ (190mm) O.D.	11	5
4 1/4″ (108mm) TK Blade Cutterhead – 8 3/4″ (222mm) O.D.	12	5.4
4 1/4″ (108mm) TK HD Blade Cutterhead – 8 3/4″ (222mm) O.D.	16	7.3
6 5/8″ (169mm) TK Blade Cutterhead – 11 1/2″ (292mm) O.D.	28	12.7
6 5/8″ (169mm) TK HD Blade Cutterhead – 11 1/2″ (292mm) O.D.	29	13.2
8 1/4″ (210mm) TK HD Blade Cutterhead – 13″ (330mm) O.D.	35	15.9
10 1/4″ (260mm) TK HD Blade Cutterhead – 15″ (381mm) O.D.	52	23.6
12 1/4″ (311mm) TK HD Blade Cutterhead – 17 3/4″ (451mm) O.D.	80	36.3

Blade/Bullet Cutterhead

Our Blade/Bullet Cutterhead features both our Blade Cutters and our Bullet Cutters. It is most effective in soft to medium formations such as clay, hard sandstone, and hard shale.

Description	Lbs.	Kg.
3 1/4″ (83mm) DK Blade/Bullet Cutterhead – 7 1/2″ (190mm) O.D.	14	6.4
6 1/4″ (159mm) DK Blade/Bullet Cutterhead – 11″ (279mm) O.D.	28	12.7
4 1/4″ (108mm) DK HD Blade/Bullet Cutterhead – 8 3/4″ (222mm) O.D.	20	9.1
4 1/4″ (108mm) DK Blade/Bullet Cutterhead – 8 3/4″ (222mm) O.D.	20	9.1
3 3/4″ (95mm) DK HD Blade/Bullet Cutterhead – 8 1/2″ (216mm) O.D.	20	9.1
3 3/4″ (95mm) DK Blade/Bullet Cutterhead – 8 1/2″ (216mm) O.D.	20	9.1
4 1/4″ (108mm) TK HD Blade/Bullet Cutterhead – 8 3/4″ (222mm) O.D.	20	9.1
4 1/4″ (108mm) TK Blade/Bullet Cutterhead – 8 3/4″ (222mm) O.D.	18	8.2
3 1/4″ (83mm) TK Blade/Bullet Cutterhead – 7 1/2″ (190mm) O.D.	14	6.4
8 1/4″ (210mm) DK HD Blade/Bullet Cutterhead – 13″ (330mm) O.D.	40	18.1
7 1/4″ (184mm) DK HD Blade/Bullet Cutterhead – 12″ (310mm) O.D.	38	17.2
6 1/4″ (159mm) DK HD Blade/Bullet Cutterhead – 11″ (279mm) O.D.	28	12.7
6 5/8″ (169mm) TK Blade/Bullet Cutterhead – 11 1/2″ (292mm) O.D.	33	15
6 5/8″ (169mm) TK HD Blade/Bullet Cutterhead – 11 1/2″ (292mm) O.D.	34	15.4
8 1/4″ (210mm) TK HD Blade/Bullet Cutterhead – 13″ (330mm) O.D.	40	18.1
10 1/4″ (260mm) TK HD Blade/Bullet Cutterhead – 15″ (381mm) O.D.	55	24.9
12 1/4″ (311mm) TK HD Blade/Bullet Cutterhead – 17 3/4″ (451mm) O.D.	69	31.3

Spade Cutterhead

Description	Lbs.	Kg.
2 1/4″ (57mm) DK Spade Cutterhead – 6 1/2″ (165mm) O.D.	10	4.5
3 1/4″ (83mm) DK Spade Cutterhead – 7 1/2″ (190mm) O.D.	12	5.5
3 3/4″ (95mm) DK Spade Cutterhead – 8 1/2″ (216mm) O.D.	20	9.1
3 3/4″ (95mm) DK HD Spade Cutterhead – 8 1/2″ (216mm) O.D.	20	9.1
4 1/4″ (108mm) DK Spade Cutterhead – 8 3/4″ (222mm) O.D.	20	9.1
4 1/4″ (108mm) DK HD Spade Cutterhead – 8 3/4″ (222mm) O.D.	20	9.1
6 1/4″ (159mm) DK Spade Cutterhead – 11″ (279mm) O.D.	22	10
6 1/4″ (159mm) DK HD Spade Cutterhead – 11″ (279mm) O.D.	22	10
7 1/4″ (184mm) DK HD Spade Cutterhead – 12″ (310mm) O.D.	33	15
8 1/4″ (210mm) DK HD Spade Cutterhead – 13″ (330mm) O.D.	35	15.9
3 1/4″ (83mm) TK Spade Cutterhead – 7 1/2″ (190mm) O.D.	12	5.5
4 1/4″ (108mm) TK Spade Cutterhead – 8 3/4″ (222mm) O.D.	14	6.4
4 1/4″ (108mm) TK HD Spade Cutterhead – 8 3/4″ (222mm) O.D.	20	9.1
6 5/8″ (169mm) TK Spade Cutterhead – 11 1/2″ (292mm) O.D.	25	11.8
6 5/8″ (169mm) TK HD Spade Cutterhead – 11 1/2″ (292mm) O.D.	26	11.8
8 1/4″ (210mm) TK HD Spade Cutterhead – 13″ (330mm) O.D.	35	15.9
10 1/4″ (260mm) TK HD Spade Cutterhead – 15″ (381mm) O.D.	48	21.8
12 1/4″ (311mm) TK HD Spade Cutterhead – 17 3/4″ (451mm) O.D.	74	33.6
