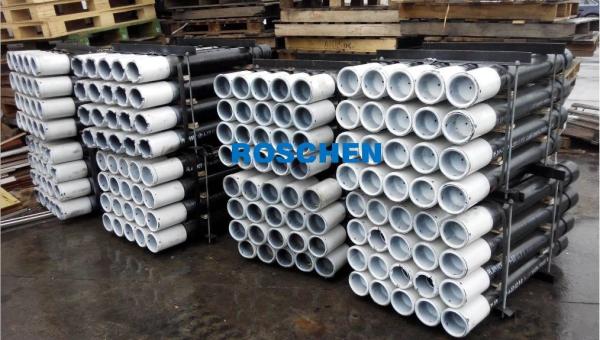

    Casing Pipe and Upset Tubing


    Casing Pipe and Upset Tubing


    A casing pipe is rarely the product pipe, and is simply used in order to create a bore. This type of pipe is most commonly used to protect utility lines over short distances. The casing pipe may be installed in sections and then welded or threaded together immediately prior to installation.


    The diameter of a casing pipe is usually between 4 to 55 inches in diameter, although there have been successful installations of casing pipes as big as 150 inches in diameter.


    1.315” X 1.80 lb/ft Multiseal ROS-PS-8

    Specification
    Nominal Tubing OD1.315"
    Drift Size0.955"
    Steel GradeL-80
    Nominal Weight1.80lb/ft
    Nominal Wall Thickness0.133"
    Nominal ID1.049"
    Connection LengthLP-Length Pin
    LB-Length Box
    LB Minimum=LP-0.18"
    Connection Make Up Loss2.23"
    Manufacturing CriteriaAPI 5CT
    Tubing Capacities
    Body Yield Strength40000lbs178kN
    API Collapse14550 psi1003bar
    Internal Yield14160psi977bar
    Joint Strength45600lbs203kN

    Connection Specification
    ConnectionROS-PS-8Compatible With1" Hyd CS
    OD1.552"ID0.970"
    Connection Length2.4"Minimum
    3.24"Standard1 recut
    4.08"Type 22 recut
    4.92"Type 33 recut
    Minimum Make Up Torque400 lb/ft540 N m
    Optimum Make Up Torque450 lb/ft610 N m
    Maximum Make Up Torque500lb/ft680 N m
    Connection Tensile Efficientcy114%Inspection CriteriaAPI5A5, API 5CT

    1.660” X 3.02 lb/ft Hydril CS

    Specification
    Nominal Tubing OD1.66"
    Drift Size1.184"
    Steel GradeL-80
    Nominal Weight3.02 lb/ft
    Nominal Wall Thickness0.191"
    Nominal ID1.278"
    Connection Length
    Connection Make Up Loss2.22"
    Manufacturing CriteriaAPI 5CT
    Tubing Capacities
    Body Yield Strength71000 lbs316kN
    API Collapse16290 psi1123bar
    Internal Yield16110 psi1111 bar
    Joint Strength71000 lbs316 kN

    Connection Specification
    Connection1 1/4" Hydril CSCompatible With1.66" ROS-PS-8
    OD1.927"ID1.218"
    Connection Length Minimum
     Standard1 recut
     Type 22 recut
     Type 33 recut
    Minimum Make Up Torque600 lb/ft810 N m
    Optimum Make Up Torque700 lb/ft946 N m
    Maximum Make Up Torque800lb/ft1081 N m
    Connection Tensile Efficientcy100%Inspection CriteriaAPI 5A5, API 5CT

    1.900” X 3.64 lb/ft ROS Multiseal PS-8

    Specification
    Nominal Tubing OD1.9"
    Drift Size1.286"
    Steel GradeL-80
    Nominal Weight3.64 lb/ft
    Nominal Wall Thickness0.2"
    Nominal ID1.5"
    Connection LengthLP-Length Pin
    LB-Length Box
    LB Minimum=LP-0.21"
    Connection Make Up Loss2.23"
    Manufacturing CriteriaAPI 5CT
    Tubing Capacities
    Body Yield Strength85000 lbs379kN
    API Collapse15070 psi1039bar
    Internal Yield14740 psi1017 bar
    Joint Strength86000 lbs383 kN

    Connection Specification
    ConnectionROS-PS-8Compatible With1 1/2" Hyd CS
    OD2.162"ID1.440"
    Connection Length2.43"Minimum
    3.27"Standard1 recut
    4.11"Type 22 recut
    4.95"Type 33 recut
    Minimum Make Up Torque800 lb/ft1085 N m
    Optimum Make Up Torque900 lb/ft1220 N m
    Maximum Make Up Torque1000lb/ft1360 N m
    Connection Tensile Efficientcy101%Inspection CriteriaAPI 5A5, API 5CT

    2.375” X 5.95 lb/ft ROS Multiseal PS-6

    Specification
    Nominal Tubing OD2 3/8"
    Drift Size1.773"
    Steel GradeP-110
    Nominal Weight5.95 lb/ft
    Nominal Wall Thickness0.254"
    Nominal ID1.867"
    Connection LengthLP-Length Pin
    LB-Length Box
    LB Minimum=LP-0.24"
    Connection Make Up Loss3.05"
    Manufacturing CriteriaAPI 5CT
    Tubing Capacities
    Body Yield Strength186000 lbs828kN
    API Collapse21010 psi1449bar
    Internal Yield20590 psi1420 bar
    Joint Strength202500 lbs902 kN
    Connection Specification
    ConnectionROS-PS-6Compatible With2 3/8" PH6
    2 3/8" RPS6
    2 3/8" BPS6
    2 3/8" HIP-HD
    OD2.906"ID1.805"
    Connection Length3.34"Minimum
    4.44"Standard1 recut
    5.53"Type 22 recut
    6.62"Type 33 recut
    Minimum Make Up Torque800 lb/ft3660 N m
    Optimum Make Up Torque900 lb/ft4120 N m
    Maximum Make Up Torque1000lb/ft4580 N m
    Connection Tensile Efficientcy101%Inspection CriteriaAPI 5A5, API 5CT

    2.875” X 8.70 lb/ft Hydril PSHW533

    Specification
    Nominal Tubing OD2 7/8"
    Drift Size2.165"
    Steel GradeP-110
    Nominal Weight8.7 lb/ft
    Nominal Wall Thickness0.308"
    Nominal ID2.259"
    Connection Length
    Connection Make Up Loss3.64"
    Manufacturing CriteriaAPI 5CT
    Tubing Capacities
    Body Yield Strength273000 lbs1215kN
    API Collapse21050 psi1450bar
    Internal Yield20620 psi1422 bar
    Joint Strength273000 lbs1215 kN

    Connection Specification
    Connection2 7/8 PSHW533Compatible WithPSH503
    PSH553
    PSH563
    OD3.328"ID2.209"
    Connection Length Minimum
     Standard1 recut
     Type 22 recut
     Type 33 recut
    Minimum Make Up Torque2500 lb/ft3378 N m
    Optimum Make Up Torque3000 lb/ft4054 N m
    Maximum Make Up Torque4400lb/ft12259 N m
    Connection Tensile Efficientcy100%Inspection CriteriaAPI 5A5, API 5CT

    3.500” X 12.95 lb/ft ROS Multiseal

    Specification
    Nominal Tubing OD3.50"
    Drift Size2.625"
    Steel GradeC-95SS
    Nominal Weight12.95 lb/ft
    Nominal Wall Thickness0.375"
    Nominal ID2.750"
    Connection LengthLP-Length Pin
    LB-Length Box
    LB Minimum=LP-0.43"
    Connection Make Up Loss3.35"
    Manufacturing CriteriaAPI 5CT
    Tubing Capacities
    Body Yield Strength349800 lbs1556 kN
    API Collapse18180 psi1254 bar
    Internal Yield17810 psi1228 bar
    Joint Strength416260 lbs1852 kN

    Connection Specification
    ConnectionROS-multiseal PS-6Compatible With3 1/2 PH6
    3 1/2 RTS-6
    3 1/2 BTS-6
    3 1/2 HITS-HD
    OD4.313"ID2.687"
    Connection Length3.77"Minimum
    5.03"Standard1 recut
    6.28"Type 22 recut
    7.54"Type 33 recut
    Minimum Make Up Torque6400 lb/ft8680 N m
    Optimum Make Up Torque7200 lb/ft9760 N m
    Maximum Make Up Torque8000lb/ft10850 N m
    Connection Tensile Efficientcy119%Inspection CriteriaAPI 5A5, API 5CT

    Upset Tubing is a long tubing joint which is installed in a wellbore to facilitate the extraction of oil and gas. It acts as a conduit, through which the produced fluids or gas get transmitted from the bottom to the surface. Tubing joint is relatively a single length pipe that can vary in length anywhere from 25 to 30 ft. This ideal length allows easy production as the tubing joint is fitted with threads on both sides and can run down through a well of any depth. Like most tubing equipment, tubing joints are designed to suit a certain well type, based on the underground conditions and fluids.
