NQU core barrrel
NQU Underground Drilling Core Barrel Alloy Steel Double Tube Core
Barrel
| Product Specification |
| Name | NQU CORE BARREL ASSEMBLY |
| industry | Exploration Core Drilling |
| HOLE DIAMETER | 75.8mm |
| Standard | Boart longyear |
| Model Number | NQU Core Barrel |
| Brand Name | ROSCHEN |
| Payment Terms | T/T |
| Model | NQU |
| CORE DIAMETER | 47.6mm |
| Material | Alloy Steel |
| Place of Origin | WuXi |
| High Light | NQU Drilling Core Barrel ,Underground Drilling Core Barrel ,Alloy Steel double tube core barrel |

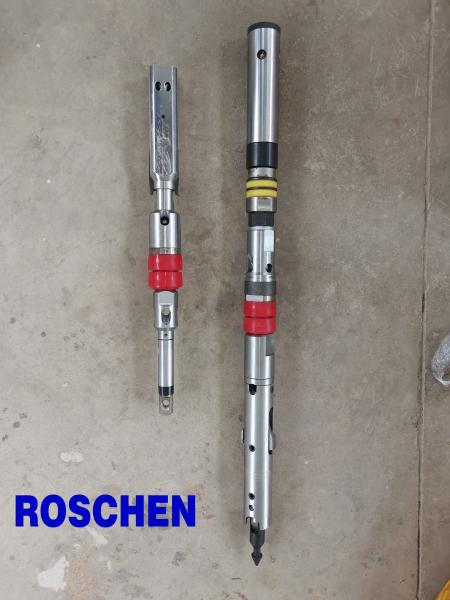

NQU UNDERGROUND WIRELINE DOUBLE TUBE CORE BARREL ASSEMBLY
Roschen offers standard NQU NWL-U core barrel for use with
NQ/NRQ/NT rods. NQU core barrel is ideal for use in most
underground drilling conditions and is available for application in
standard DCDMA N size hole. It consists of the NQU head assembly ,
NQU inner tube components and NQU outer tube components.
| NQ-U Series Core Barrels (underground) |
| SIZE | CORE DIAMETER | HOLE DIAMETER |
| mm | inch | mm | inch |
| NQU | 47.6 | 1.874 | 75.8 | 2.984 |
| NQU Core Barrel Assembly |
| Item | Part No. | Description |
| 1~10 | RS3544020 | Core Barrel Assembly,NQU 1.5M |
| 1~10 | RS3544026 | Core Barrel Assembly,NQU 3.0M |
|
| NQU Inner Tube Assembly |
| Item | Part No. | Description |
| 1~5 | RS3544032 | Inner Tube Assembly,NQU 1.5M |
| 1~5 | RS3544038 | Inner Tube Assembly,NQU 3.0M |
|
| NQU Core Barrel Kit |
| Item | Part No. | Description |
| 1 | RS3548625 | Quick Pump-in Head Assembly, NQU |
| 2 | RS24909 | Inner-tube, NQ 1.5 M |
| RS24891 | Inner-tube, NQ 3 M |
| 3 | RS25238 | Stop Ring, NQ |
| 4 | RS30488 | Core Lifter, NQ Slotted |
| RS3546911 | Core Lifter, NQ Slotted(diamond coated) |
| RS24894 | Core Lifter, NQ Fluted |
| RS3548554 | Core Lifter, NQ Fluted(diamond coated) |
| 5 | RS24892 | Core Lifter Case, NQ |
| 6 | RS3545405 | Locking Coupling, NQ Full-hole with Tang |
| RS3546190 | Locking Coupling, NQ Full-hole |
| RS5007787 | NQ Stabilized Locking Coupling with Tang |
| RS5007785 | NQ Stabilized Locking Coupling |
| 7 | RS24896 | Adapter Coupling, NQ |
| 8 | RS24897 | Landing Ring, NQ |
| 9 | RS24910 | Outer-tube, NQ 1.5 M |
| RS24898 | Outer-tube, NQ 3.0 M |
| 10 | RS44407 | Stabilizer, NQ Inner-tube |
| 11 | ------ | Thread Protector |
NOTE:
* Reaming shell and core bit not included in the core barrel
assembly
** Other length or extended core barrel is also available
