Tungsten Carbide Down The Hole Drilling Button Bits With Less Blockages

DTH Hammer Bits key face types:

1. Flat Faced Hammer Bit
These hammer bits are excellent for drilling in medium to hard formations. These hammer bits maintain average hole straightness but have an excellent penetration rate.

2. Medium to hard ground formations are no problem for this DTH Hammer Bit. The DTH bit keeps average hole straightness but drills at an excellent speed.

3.These DTH Hammer Bits are great for drilling through medium to hard formations. Drop Center Hammer Bits have excellent hole straightness with an average drilling rate of penetration.

4. Concave Type Hammer Bit

Concave Hammer bits are ideal for drilling through medium to hard formations. These DTH hammer bits are known to keep an extremely straight hole with an average rate of penetration.

Down The Hole Drilling Button Bits Parameters

Down The Hole Drilling Button Bits Advantage

1. High grade tungsten carbide inserts

2. Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment

Down The Hole Drilling Button Bits Details

1. Roschen Hammer Bits or DTH Button Bits range in size from 2" hole diameter upwards (50.1mm) to 36” (914.4mm). Roschen always supply stocks DTH Hammers and DTH Button bits for all major DTH Hammer brands and shanks.

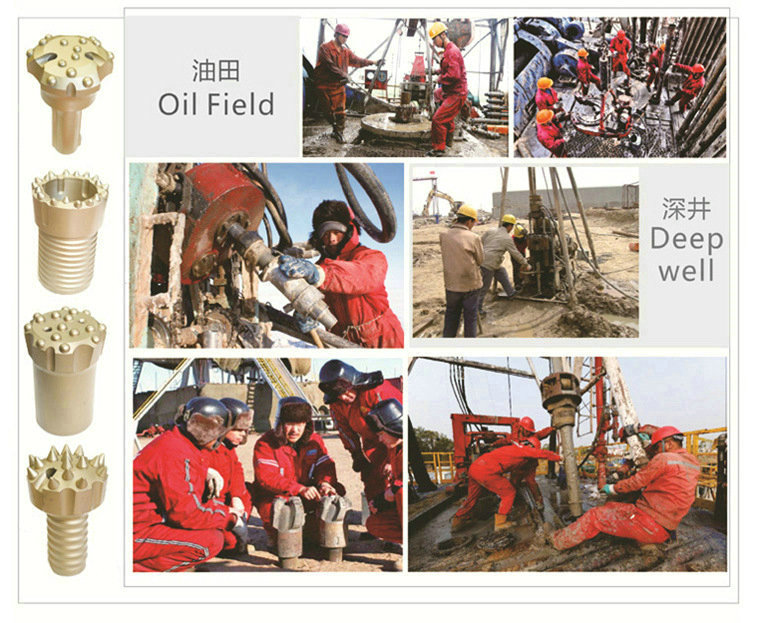

2. When percussion or hammer drilling your choice of hammer bit is just as important as your choice of down hole hammer. DTH stands for “down the hole”. When hammer drilling, the hammer bit gets its energy from repetitive striking of a pneumatic down hole hammers piston. This hammering with slow rotation drives the hammer bit gradually through ground formations. DTH hammer bits are most commonly used in percussion rotary air blast drilling, mining blast holes, and mineral exploration and water well drilling industries.

3. The cutting interface of the DTH hammer bits are loaded with high quality tungsten carbide, which is an extremely hard material. Since hammer bits work with air pressure delivered to the down hole hammer, it is important to use the recommended pressure provided when hammer drilling. Down hole hammer bits come with a wide variety of carbide styles. The sharper the point, the softer formation it is used for. The different styles of carbides on the hammer face include dome, cone and ballistic tungsten carbide inserts which are press fit into the DTH bit.

4. Roschen can open up the flushing holes to provide hammer bits that can be used in reverse circulation drilling. Customized Hammer Bits, Flat Faced Hammer Bits, Convex Hammer Bits, Drop Center Hammer Bits, Concave Hammer Bits, and all kinds of exceptional custom drilling tools are offered at Roschen group limited.

FAQ

Terms & Conditions of Ordering:

Quality warranty:
Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.

Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damage during transportation. Also we can customize package according to your special requests.

Production time:
Generally need 15-25 days

Transportation:
By air, By Express or By sea according to your requests.

 ROSCHEN GROUP

ROSCHEN Group has the world class advanced equipment like 12000 tons forging, metal processing plant, heat treatment workshop, numerical control plant, Advanced five-axis machining center, etc. professional technical and skilled team to ensure mining, mineral tools, equipment products quality stable and reliable.

ROSCHEN Group Limited is a manufactory with years of research and development for the mining, mineral tools, equipment. We are capability to produce high performance world class products and control excellent quality. Our main product includes tricone bit, diamond core bits, drill pipe, core barrel, TCI tricone bit, mill tooth tricone bit, RC hammer, DTH bit, etc.

ROSCHEN Manufactory PROCESS

ROSCHEN Sales Value Growing Up!

ROSCHEN'S MISSION

1. Strive to create and supply Best quality products for the industry that last longer than the average products.

2. Provide excellent service for our clients.  24 hour-7 days /week schedule to get our clients what they need – FAST.
