    Water Well COP44 Dth Button Bits , 4”Size Downhole Drilling Tools

    Ask Lasest Price
    Brand Name : ROSCHEN
    Model Number : COP 44
    Certification : ISO
    Price : Negotiate
    Supply Ability : 100000 pcs
    • Product Details
    • Company Profile

    Water Well COP44 Dth Button Bits , 4”Size Downhole Drilling Tools

    Water Well COP44 Dth Button Bits , 4”Size Downhole Drilling Tools


    Dth Button Bits Application


    Dth Button Bits For Mining is suitable for mining,quarring,tunneling and so on. It is widely used for gound quarring and underground drilling.


    Dth Button Bits Main Features


    1. High quality;
    2. High resistance;
    3. High footage speed;
    4. Very low breakage;
    5. Very low percentage of carbide falling off.
    6. Wide application range.

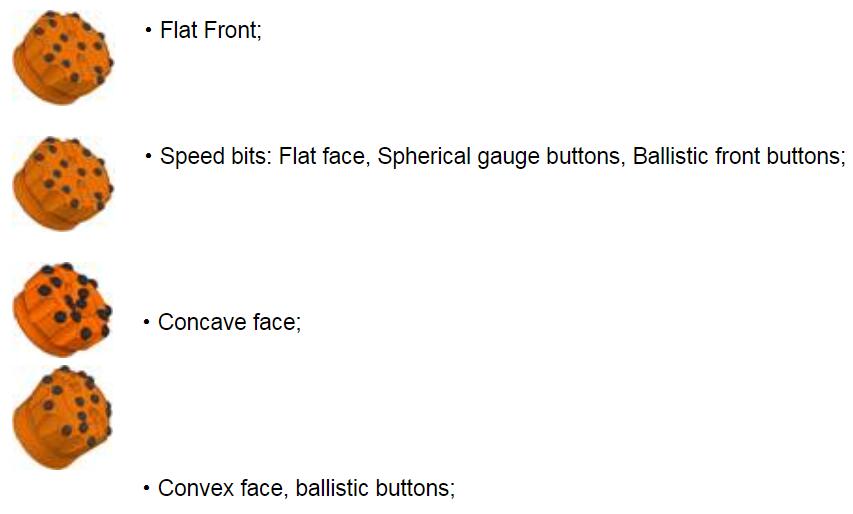

    DHD 340 hammer bits / COP 44 hammer bits face style:





    Dth Button Bits Parameters


    ROSCHEN DTH Bits Specifications
    Hammer SizeBits diameterShankROSCHEN CODE
    MetricInch
    1"64mm-70mm2 1/2"-2 3/4"BR1ROS 11
    2"70mm-95mm2 3/4"-3 3/4"MACH20/BR2ROS 22
    3"90mm-102mm3 1/2"-4"COP32/COP34/MACH303ROS 32
    M30/DHD3.5/BR3ROS 34
    4"105mm-152mm4 1/8"-6"COP44/DHD340/MACH44ROS 42
    SD4/M40/QL40ROS 44
    5"133mm-165mm5 1/4"-6 1/2"COP54/DHD350R/MACH50ROS 52
    SD5/M50/QL50/BR5ROS 54
    6"152mm-254mm4 1/8"-10"COP64/DHD360/SD6ROS 62
    M60/QL60/Bulroc BR6ROS 64
    8"203mm-330mm8"-13"COP84/DHD380/SD8ROS 82
    QL80/M80/M85ROS 84
    10"254mm-380mm10"-15"SD10ROS 100
    NUMA100
    12"305mm-508mm12"-20"DHD1120/SD12ROS 120
    NUMA120/NUMA125
    Notes:
    Metzke, Remet thread is available!
    Any special size of DTH bits will be available by requests.

    About ROSCHEN


    ROSCHEN Geotechnical Drilling, Exploration and Rock Drilling products.

    ROSCHEN Geotechnical Drilling, Exploration, Rock Drilling, can offer the equipment needed for all rock drilling, underground and surface exploration applications in Mining Industry, Water Well Industry, Oil Field Industry. This includes rigs and all full range of high technology and high quality products, ITH equipment such as button bit, DTH bit, DTH Hammer, wireline series products, metric series products, drill rod and conventional core barrel, overshot, as well as casing and diamond core bit - all designed to maximize our customer profitability.

    Rock drilling and Exploration drilling is tough, results-driven work. And if you want it done right, you need the right tools. ROSCHEN Exploration Products has the products you've depended on for many years.
