Oil Field API 5CT 5B OCTG Mining Drill Rod , 3 1/2 INCH API Drill
Pipe For Oil Drilling
Mining Drill Rod Application
Drill pipe, is hollow, thin-walled, steel or aluminium alloy piping
that is used on drilling rigs. It is hollow to allow drilling fluid
to be pumped down the hole through the bit and back up the annulus.
It comes in a variety of sizes, strengths, and wall thicknesses,
but is typically 27 to 32 feet in length (Range 2). Longer lengths,
up to 45 feet, exist (Range 3).
Drill stems must be designed to transfer drilling torque for
combined lengths that often exceed several miles down into the
Earth's crust, and also must be able to resist pressure
differentials between inside and outside (or vice versa), and have
sufficient strength to suspend the total weight of deeper
components. For deep wells this requires tempered steel tubes that
are expensive, and owners spend considerable efforts to reuse them
after finishing a well.
A used drill stem is inspected on site, or off location. Ultrasonic
testing and modified instruments similar to the spherometer are
used at inspection sites to identify defects from metal fatigue, in
order to preclude fracture of the drill stem during future
wellboring. Drill pipe is most often considered premium class,
which is 80% remaining body wall (RBW). After inspection determines
that the RBW is below 80%, the pipe is considered to be Class 2 or
"yellow band" pipe. Eventually the drill pipe will be graded as
scrap and marked with a red band.
Mining Drill Rod Specifications:
| Short section of oil pipe | Specification (in) | Maximum outer diameter(in)(mm) | Wall thickness(mm) | Steel Grade |
| Flat | External upset |
| 2 3/8 | 2.375(60.33) | 2.594(65.90) | 0.190(4.83) | | J55
N80
L80 |
| 2 7/8 | 2.875(73.03) | 3.094(78.60) | 0.217(5.51) | |
| 3 1/2 | 3.500(88.90) | 3.750(95.25) | 0.254(6.45) | |
| Coupling | Specification (in) | Maximum outer diameter(in)(mm) | Minimum length(in)(mm) | Steel Grade |
| Flat | External upset | Flat | External upset |
| 2 3/8 | 2.875(73.03) | 3.063(77.80) | 4 1/4"(107.95) | 4 7/8"(123.83) | J55
N80
L80 |
| 2 7/8 | 3.500(88.90) | 3.668(93.25) | 5 1/8"(130.18) | 5 1/4"(133.35) |
| 3 1/2 | 4.250(108.00) | 4.500(114.30) | 5 5/8"(142.88) | 5 3/4"(146.05) |
| Adaptor | Different kinds of adaptor connectors of J55' N80' L80 Adaptor
Coupling |

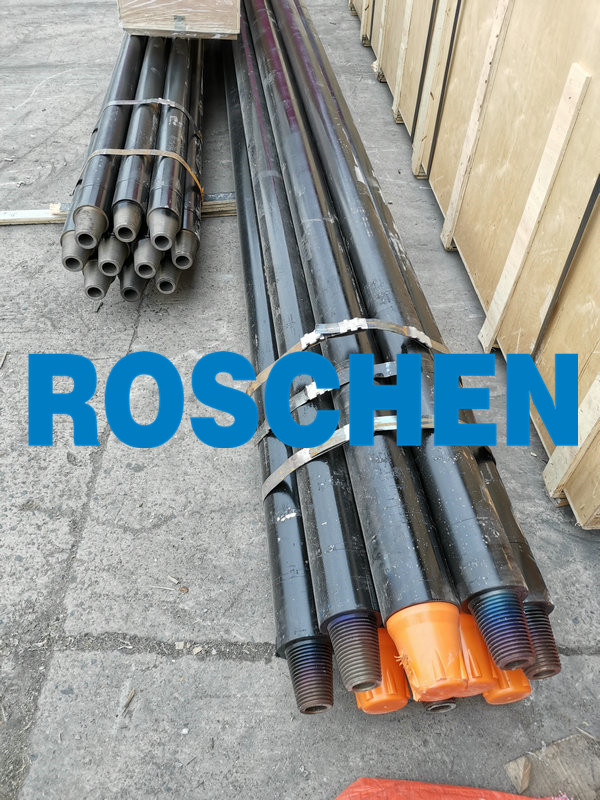

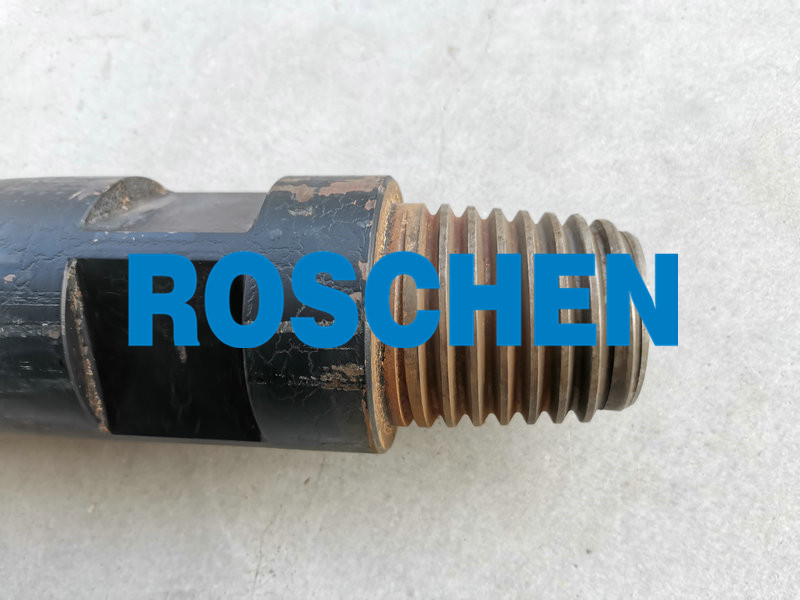

Pictures
