    Thin Wall Wireline AW BW NW Steel Drill Pipe For Q Series Core Barrel

    Ask Lasest Price
    Brand Name : ROSCHEN
    Model Number : NTW
    Certification : ISO
    Price : Negotiate
    Supply Ability : 1000000 pcs
    • Product Details
    • Company Profile

    Thin Wall Wireline AW BW NW Steel Drill Pipe For Q Series Core Barrel

    Thin Wall Wireline AW BW NW Steel Drill Pipe For Q Series Core Barrel


    Feature


    1. Light weight (lighter than the old-fashioned drill pipe 45%)


    2. Footage soon, dust small vertical holes left after drilling cuttings, into a hole clear.


    3. Card beans quickly and easily connect and save banding material.


    4. Under separation of body and drilling may be the end, the use of life extended.


    5. Water-based wet good pass operation


    Whether you are drilling a simple, shallow well or an extremely deep hole in unfavourable formations, ROSCHEN Drilling Tools has the drill pipe and accessories to get the job done.


    Drill pipe sizes from 1-3/4" to 14" in outside diameter and typical joints in lengths of range 2 and range 3 are available. Western Drilling Tools can customize drill pipe from 5ft sections to up to 46ft in length and offers a full set of accessories to match any size drill pipe or drill string. The drill pipe is manufactured to high quality and durability to withstand even the most rigorous drilling applications. ROSCHEN Drilling Tools is also capable of supplying directional pipe, as well as drill pipe with upset tool joints and inertia welded drill pipe. Hard banding can be applied to any of the drill pipe.


    ROSCHEN Drilling Tools supplies numerous styles of drill pipe with all kinds of different threads. The typical machining process for more common drill pipe involves cutting the threaded tool joints out of extremely durable and wear resistant 4140 – 4145, then machining a tang to the drill pipe. The pipe is heated to 400°, ROSCHEN Drilling then press fit the tool joints inside and welds them with alloy and finally, slowly cools the drill pipe. ROSCHEN also manufactures drill pipe out of many other materials including A106 B, J55, 4140 L80, 4140 P110 as well as 300 series stainless steel.


    ROSCHEN Specialisted in producing of varies kinds of drill rod, such as integral dirll rod, extention rod, DTH drill rod, twist drill rod, tapered rod, coal drill rod, three angle drill rod, oil well drill rod, gas rod, water well drill rod, NQ drill rod etc.


    Made-to-order products can be supplied according to your detailed requirements.


    The products has two kinds of dry-type and wet-type, which has specifications of diameter 26mm, 28mm, 30mm, 38mm, 40mm, etc. As the manufacturer of coal drill rod we can supply you with all of your drilling needs. They are used for electric coal drill anchor bar, which is ideal and necessary tools for coal mine exploitation and shoring.


    This product has two kinds: Solid and hollow, the specification is: 26, 28, 30, 38, 40 etc.

    It is suitable for electric drill boring, is the ideal tool for coal mine.


    Zize available:

    "Q" Series: BQ, NQ, HQ, PQ

    "W" Series: RW, EW, AW, BW, NW, HW

    "WJ" Series: AWJ, BWJ, NWJ, KWJ, HWJ

    Metric Series: 33, 42, 50


    Drill Rod

    metric drill pipe

    Drill rod specification:
    "Q" series:AQ, BQ, NQ, HQ, PQ, NQ3, HQ3, PQ3,
    "TW" series:ATW, BTW, NTW, HTW,
    "U" series (underground):AQU, BQU, NQU, HQU, ATWU, BTWU
    SizeO.D.(mm)I.D.(mm)Weight/3m (kg)Weight/1.5m (kg)
    A43.136.1115.5
    B55.5845.9719.059.53
    N69.8560.4523.7711.89
    H88.977.7234.8817.44
    P114.3101.653.0726.54
    ATW44.536.811.55.75
    BTW56.6448.5115.657.83
    NTW73.1564.2622.9111.46
    HTW90.9381.5330.7515.38
    SizeLengthODIDWeight
    Standard Q thread or RQ thread
    Drill rod, B1.5 m55.6mm46mm9.4kg
    3m18.6kg
    Drill rod, N1.5 m71mm60mm13.5kg
    3m23.7kg
    Drill rod, H1.5 m89mm77.8mm17.93kg
    3m35.84kg
    Drill rod, P1.5 m114.3mm101.6mm26.79kg
    3m52.56kg

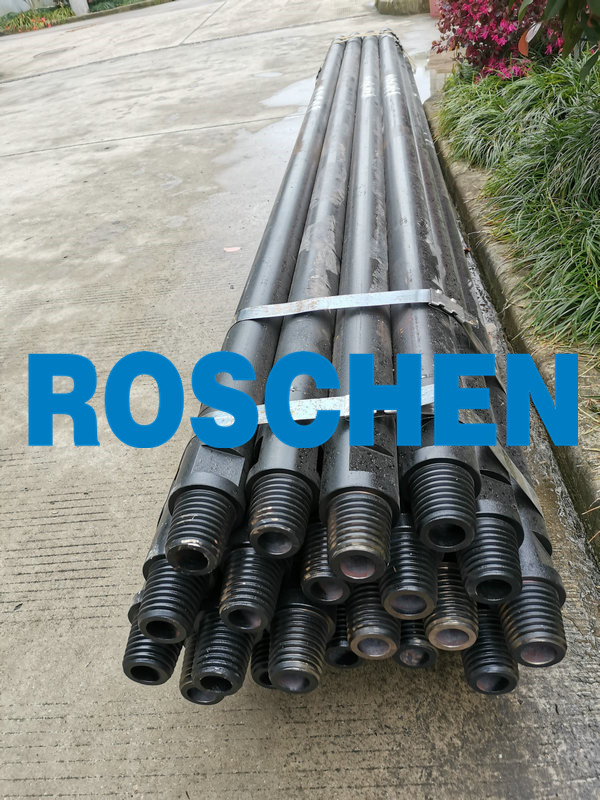

    Pictures
