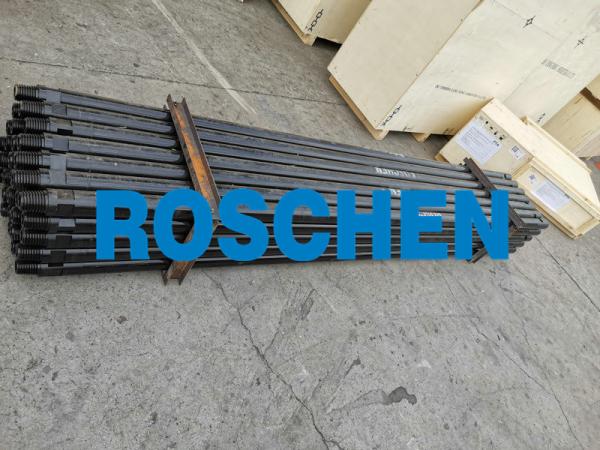

BW NW HW BWL HWL NWL PWL Extension Drill Rod
Introductions:
1. Our drill rods are of the highest quality ,are manufactured to
exacting specifications using advancing maching technoogy.
2. They are manufactured from seamless steel tube by cold drawn.The
material is XJY850/30CrMnSiA which meets the global standard.
3. Drill rods are made from quality heat treated materials which
ensure superior strength, wear resistance and toughness in the most
demanding applications
4. Rods and casing are manufactured under stringent industry
standards, and are field tested under a variety of conditions.
5. All rods are designed to be compatible with other rods
manufactured to the standard DCDMA
Specifications:
1. High Penetration Rate
2. Longer lifetime
3. Lower Using Cost
4. Excellent cemented carbide
5. AW, BW, NW, HW, PW, BWL, HWL, NWL, PWL
6. High Cost-effective
Size Available:
Wireline Series: B, N, H, P
"WJ" Design: AWJ, BWJ, NWJ, KWJ, HWJ
"W" Design: RW, EW, AW, BW, NW, HW
Metric Series: 33, 42, 50, 56, 66, 76, 86, 89, 101
We also can produce various sizes of casing tubes.
Size Available:
"W" Design: RW, EW, AW, BW, NW, HW, PW, SW, UW, ZW/HWT, PWT
Metric Series: 46, 56, 66, 76, 86, 101, 116, 131, 146
"X" Design: RX, EX, AX, BX, NX, HX, PX, SX, UX, ZX
Technical parameters:
| Description | OD | OD | Weight(kg) |
| AW 3.0m(10') CASING | 57.10(mm) | 48.40(mm) | 17 (kg/3m) |
| AW 1.5m(5') CASING | 2.25(in) | 1.91(in) | 38(Ib/10ft |
| BW 3.0m(10') CASING | 73.00(mm) | 60.30(mm) | 31.30(kg/3m) |
| BW 1.5m(5') CASING | 2.88 (in) | 2.38(in) | 70 ( Ib/10ft) |
| NW 3.0m(10') CASING | | | |
| NW 1.5m(5') CASING | 88.90(mm) 3.5(in) | 76.20(mm) 3.00 (in) | 38.4(kg/3m) 86(lb/10ft) |
| NW 1.0m(2') CASING | | | |
| HW 3.0m(10') CASING | | | |
| HW 1.5m(5') CASING | 114.30(mm) 4.50(in) | 101.60(mm) 4.00 (in) | 52.20(kg/3m) 17.00(lb/10ft) |
| HW 1.0m(2') CASING | | | |
| HWT 3.0m(10') CASING | | | |
| HWT 1.5m(5') CASING | 114.30(mm) 4.50(in) | 101.60(mm) 4.00 (in) | 52.20(kg/3m) 17.00(lb/10ft) |
| HWT 1.0m(2') CASING | | | |
| PW 3.0m(10') CASING | | | |
| PW 1.5m(5') CASING | 139.70(mm) 5.50(in) | 127.00(mm) 5.00(in) | 64.30 (kg/3m)144.00(lb/10ft) |
| PW 1.0m (2') CASING | | | |
