Roller Reamer with interchangeable roller cone tools for soft
formation to hard formation reaming drilling
Roller Reamer
Model 3RXC and 6RXC mud-lubricated roller reamers are at the core
of ROSCHEN Oilfield Manufacturing “Hole Gauge” Assurance drilling
tools. They offer easy rig floor replacement of cutters and parts
that are also interchangeable with most other brands.
No welding is necessary to replace the blocks and only when needed,
special repair tools are supplied for safety.

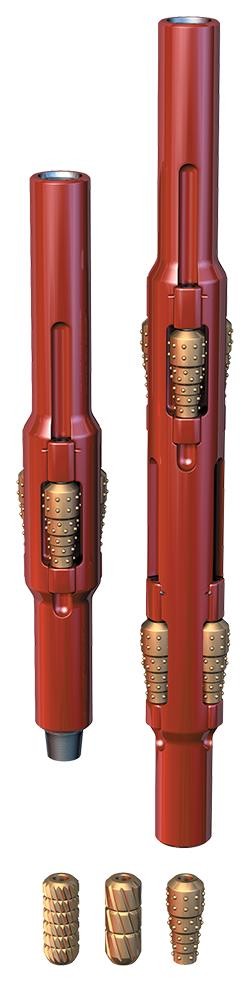

ROSCHEN ROLLER REAMER FEATURES:
Three roller cutter types are offered for formation-matched reamer
performance.
● The type “VHM” soft formation cutters deliver maximum reaming
action in soft formations like soft lime and shale. Service life of
cutters is enhanced with hardened and carburized teeth.
● The type “QHM” medium to hard formation cutters are most suitable
for cherty formations to hard formations such as dolomite, hard
lime and chert.
● Knobby “KHM” cutters are prescribed for very hard formations.
Knobby cutters deliver reliable reaming performance in hard,
abrasive and semi-abrasive formations such as granite and sand.

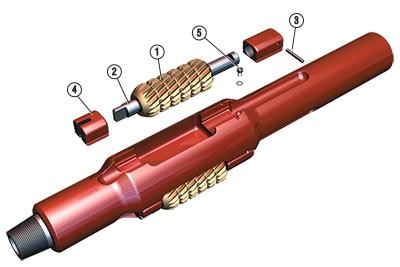

ROSCHEN ROLLER REAMER COMPONENTS
1. Cutters – See ROSCHEN Roller Reamer Features
2. Reamer Pin – A large diameter pin, carburized and hardened,
ensures good bearing wear characteristics. The reamer pin is
prevented from rotating by the engagement of the end of the pin
with slot in the body bearing block.
3. Cross Pin – This drive-fit cross-pin arrangement safely retains
the main reamer pin and reamer cutter while providing a simple, yet
safe, locking device.
4. Drive-Fit Body Bearing Blocks – Blocks properly position the
cutter in the body to cut a full-gauge hole. Blocks are readily
changeable by the drilling crew.
5. Socket Head Cap Screws and Lock Washers – Included as secondary
locking device for the reamer pins on each body for hole sizes 6
inches and larger.
CAUTION: Surfaces of block are carburized. Beware of fragments of
this brittle surface breaking off under impact of sledgehammer.
WEAR SAFETY GLASSES AT ALL TIMES
ROSCHEN ROLLER REAMER APPLICATION:
Near-Bit Configuration:
The ROSCHEN 3RXC roller reamer is a three-point reamer that can be
run between bit and drill collar to eliminate unnecessary
back-to-bottom reaming with a new bit.
Drill String Configuration:
In this configuration the ROSCHEN 3RXC is run between drill collars
to ream out doglegs, key seats, and ledges in the hole. This reamer
arrangement offers the most mitigation for prevention of hole gauge
impairment that can result in a stuck-pipe.
Six Point (6RXC) Reamer Configuration:
The 6RXC roller reamer is run between the drill collars and the bit
to afford greater stabilization and reaming capacity. It is very
effective in preventing sharp hole angle changes when run as a
packed hole assembly.
